Electric Actuation

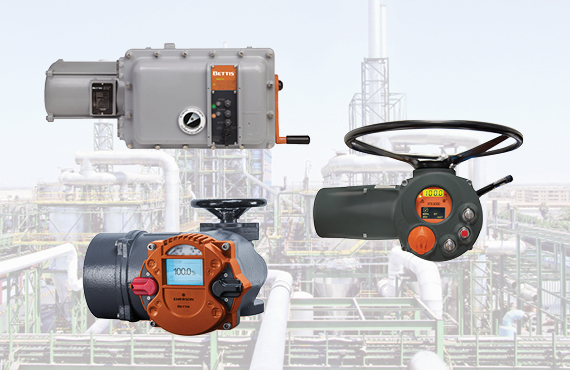

Bettis Electric Actuators

Bettis Electric Actuators

The electric actuator portfolio from Bettis covers a range of applications, from the latest in intelligent control and fail-safe technology to robust heavy-duty solutions able to withstand the harshest environments.

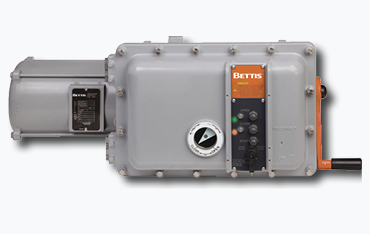

Bettis M2CP

  • Robust, easy to service, conventional actuator with a wide range of torque and speed for on/off and control
  • Compatible with DCMlink
  • Multi-turn torque up to 21,693 Nm (16,000 ft-lb)
  • Quarter-turn torque up to 370,000 Nm (273,000 ft-lb)
  • Linear force up to 2,224 kN (500,000 lb)
  • Certified explosion and weatherproof

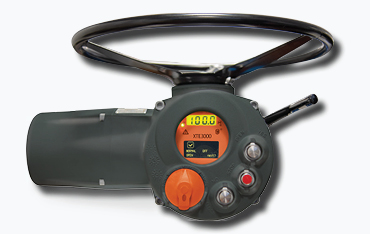

XTE3000

  • Intelligent and versatile actuator with a wide range of torque and speed for on/off and control
  • Non-intrusive setup via local interface, Bluetooth, or DCMlink
  • Multi-turn torque up to 57,000 Nm (42,000 ft-lb)
  • Quarter-turn torque up to 1,000,000 Nm (737,500 ft-lb)
  • Linear force up to 150 kN (33,720 lb)
  • Certified explosion and weatherproof

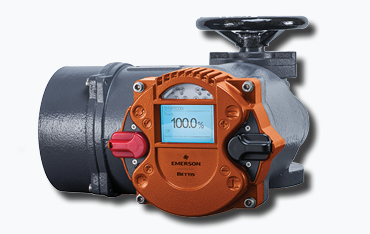

RTS

  • Highly configurable and intelligent actuator with options for continuous modulation and mechanical fail-safe
  • Independently adjustable operating and fail-safe speed, and torque
  • Non-intrusive setup via local interface, Bluetooth™, or DCMlink (in development)
  • Multi-turn torque up to 64 Nm (47 ft-lb)
  • Quarter-turn torque up to 5,000 Nm (3,687 ft-lb)
  • Linear force up to 40 kN (8,992 lb)
  • Certified explosion and weatherproof

Why Electric Actuation?

Total Cost of Ownership:

Maintenance & Energy Savings

Functionality:
On/Off, Fail Safe, Continuous Duty, and Control

Reliability & Safety:
Predictive Maintenance, Feedback, Diagnostics and Connectivity

Sustainability / ESG:
Drive for Net Zero & Clean Energy

Interested in electric actuation but not sure where to start?

We can help.​ Control Southern exclusively represents the complete Emerson electric actuator portfolio. Fill out the form below to get started.

You Have Questions, We Have Answers.

My electric actuators frequently lose calibration or fail altogether due to temperature and/or vibration issues?


Our Bettis M2CP electric actuator includes robust steel gears throughout the drive train including limit and torque switch gears.

Most other electric actuators use plastic encoder gears, which can be prone to slippage and breakage; especially in high cycle, high temperature, and high vibration applications

I have remotely-located control valves that are painful to get plant air supply to?

Our Bettis RTS electric actuators are designed for continuous, high-resolution modulation. They are available in both mechanical spring failsafe and fail in-place designs and are even available with Fisher Valve Adaption.

I have electric actuators that regularly fail in modulating control applications?

Most electric actuators are limited to 1,200 starts (S4-50) per hour or less. Our Bettis RTS utilizes a brushless DC motor rated for continuous modulation (S9)
